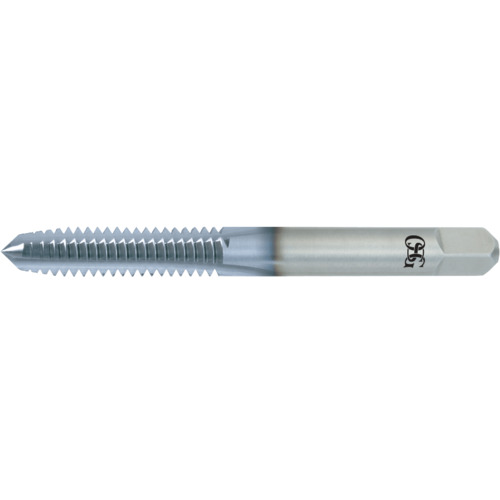

M3.5 0.60 Dia-D4-3 FL-Bright HSS-Plug Hand Tap
Straight Flute Tap; M3.5 × 0.6 mm ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; D4 ; Series 141
| Thread Diameter Size (TDZ) | M3.5 | Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 0.6 mm | Chamfer | 4P-4.5P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | End Shape | Chamfer |
| Usable Length (LU) | 20 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 141 |
| Cutting Edge Material | HSS | Thread Size | M3.5 × 0.6 |
| Thread Tolerance Class (TCTR) | D4 |
Product Features
| Remarks | •High Speed Steel •Ground thread | Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.35000
Package Height
.25000
Package Weight
0.01
