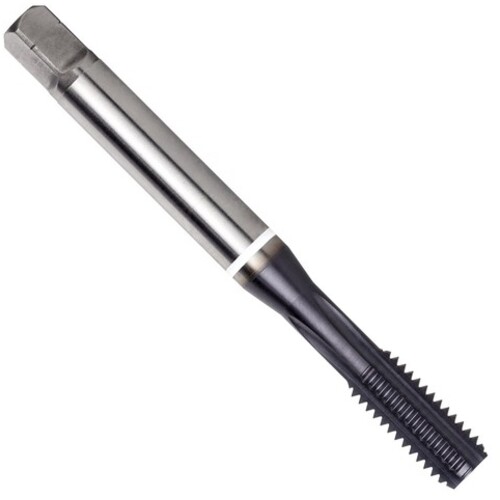

Dormer HSS-E-PM TiAlN/Top SHARK UNC DIN ANSI Machine Tap, White for Cast Iron, Full Bottoming Straight Flute DIN/ANSI Series E815 E-code # E8153/8
Straight Flute Tap; 3/8″ - 16 ; 3.937″ OAL ; 4 FL ; HSSE-PM ; TiAlN ; H5 ; Series E815
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 16 | Coating | TiAlN |
| Thread Standard | UNC | Tapping Prehole Diameter (Pre-hole) | 5/16″ |
| Overall Length (OAL) | 3.937″ | Flute Length | 0.787″ |
| Thread Cutting Part Length (THL) | 0.787″ | Flute Type | Straight |
| Usable Length (LU) | 1.535″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | | Length Group | 2.5D |
| Cutting Edge Material | HSSE-PM | Square Size | 0.284″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Special Feature | White Ring | Series/List # | E815 |
| Standard | DIN/ANSI | Thread Size | 3/8″ - 16 |
Product Features
| Family Description | E-code # E8153/8 | Country of Origin | India |
Shipping Info
Package Length
4.24000
Package Width
.40000
Package Height
.40000
Package Weight
0.35
