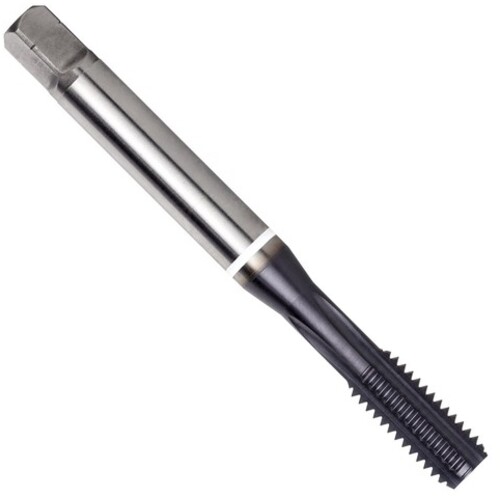

Dormer HSS-E-PM TiAlN/Top SHARK UNC DIN ANSI Machine Tap, White for Cast Iron, Full Bottoming Straight Flute DIN/ANSI Series E815 E-code # E8151/4
Straight Flute Tap; 1/4″ - 20 ; 3.15″ OAL ; 4 FL ; HSSE-PM ; TiAlN ; H5 ; Series E815
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 20 | Coating | TiAlN |
| Thread Standard | UNC | Tapping Prehole Diameter (Pre-hole) | #7 |
| Overall Length (OAL) | 3.15″ | Flute Length | 0.591″ |
| Thread Cutting Part Length (THL) | 0.591″ | Flute Type | Straight |
| Usable Length (LU) | 0.984″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | | Length Group | 2.5D |
| Cutting Edge Material | HSSE-PM | Square Size | 0.189″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Special Feature | White Ring | Series/List # | E815 |
| Standard | DIN/ANSI | Thread Size | 1/4″ - 20 |
Product Features
| Family Description | E-code # E8151/4 | Country of Origin | India |
Shipping Info
Package Length
4.53300
Package Width
.58700
Package Height
.58700
Package Weight
0.048
