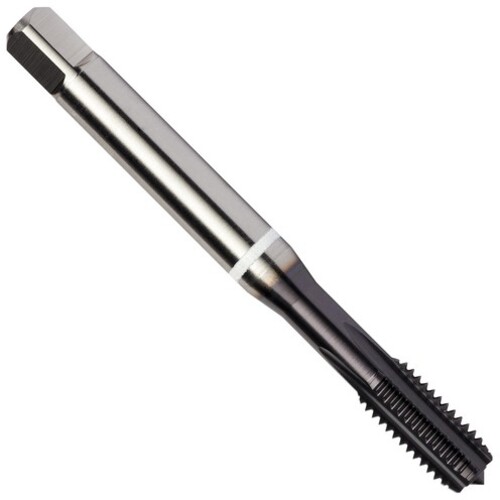

Dormer HSS-E-PM TiAlN/Top SHARK UNF DIN ANSI Machine Tap, White for Cast Iron, Semi Bottoming Straight Flute DIN/ANSI Series E914 E-code # E9145/16
Straight Flute Tap; 5/16″ - 24 ; 3.543″ OAL ; 4 FL ; HSSE-PM ; TiAlN ; H5 ; Series E914
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 24 | Coating | TiAlN |
| Thread Standard | UNF | Tapping Prehole Diameter (Pre-hole) | I |
| Overall Length (OAL) | 3.543″ | Flute Length | 0.709″ |
| Thread Cutting Part Length (THL) | 0.709″ | Flute Type | Straight |
| Usable Length (LU) | 1.339″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | | Length Group | 2D |
| Cutting Edge Material | HSSE-PM | Square Size | 0.236″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Special Feature | White Ring | Series/List # | E914 |
| Standard | DIN/ANSI | Thread Size | 5/16″ - 24 |
Product Features
| Family Description | E-code # E9145/16 | Country of Origin | India |
Shipping Info
Package Length
4.52300
Package Width
.57300
Package Height
.53400
Package Weight
0.072
