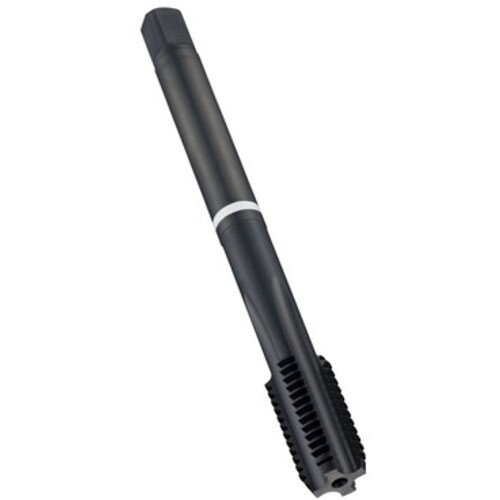

Dormer HSS-E-PM Steam Tempered SHARK M Machine Tap Straight Flute, White Flute DIN 376 Series E252 E-code # E252M14
Straight Flute Tap; M14 × 2 mm ; 110 mm OAL ; 4 FL ; HSSE-PM ; Black Oxide ; Series E252
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M14 | Tool Type | Machine Tap |
| Thread Pitch (TP) | 2 mm | Coating | Black Oxide |
| Thread Standard | M | Tapping Prehole Diameter (Pre-hole) | 12 mm |
| Overall Length (OAL) | 110 mm | Flute Length | 25 mm |
| Thread Cutting Part Length (THL) | 25 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Style | Plug |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Measurement Type | Metric |
| Special Feature | White Ring | Series/List # | E252 |
| Standard | DIN 376 | Thread Size | M14 × 2 |
Product Features
| Family Description | E-code # E252M14 | Country of Origin | India |
Shipping Info
Package Weight
0.353
