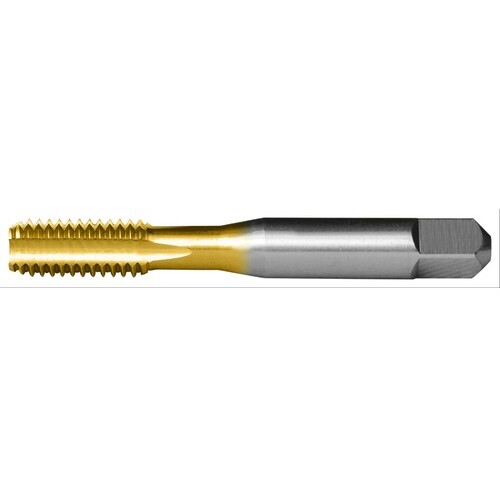

BOT HAND TAP TIN 1/2-13
| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 13 | Chamfer | Bottoming |
| Thread Standard | NC | Coating | TiN |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.94″ | End Shape | Square |
| Usable Length (LU) | 15/16″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Series/List # | 1003-TN |
| Cutting Edge Material | HSS | Thread Size | 1/2″ - 13 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | United Kingdom |
Shipping Info
Package Weight
.108
