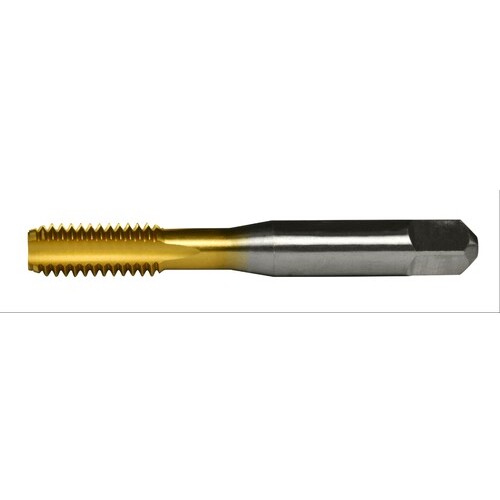

8-36 GH2 4FL BOTT TAP
| Thread Diameter Size (TDZ) | #8 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 36 | Chamfer | Bottoming |
| Thread Standard | NF | Coating | TiN |
| Overall Length (OAL) | 2-1/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3/4″ | End Shape | Square |
| Usable Length (LU) | 3/8″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Series/List # | HTGP-TN |
| Cutting Edge Material | HSS | Thread Size | #8 - 36 |
| Thread Tolerance Class (TCTR) | H2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.500
