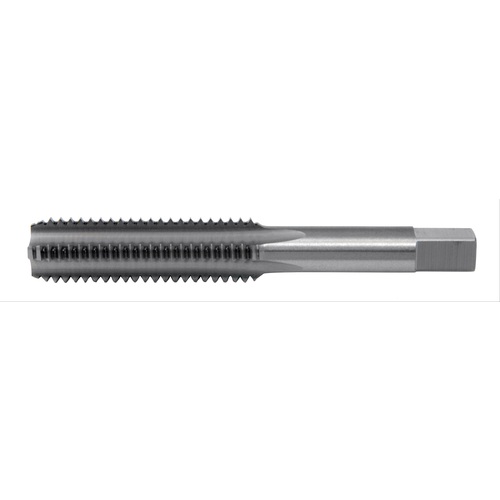

#10-24NC H2 4F GP BOT TAP
Straight Flute Tap; #10 - 24 ; 2-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; H2 ; Series 403
| Thread Diameter Size (TDZ) | #10 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 | Chamfer | Bottoming |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Square |
| Usable Length (LU) | 7/8″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Length Group | 1.5D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 403 |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #10 - 24 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.015
