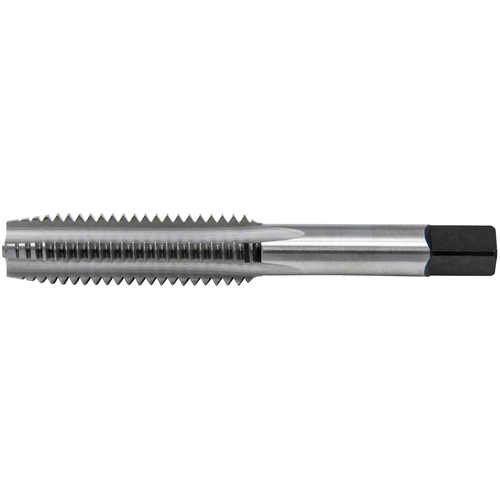

1/4-20NC H5 4F GP PLG TAP
Straight Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 4 FL ; HSS ; Uncoated ; H5 ; Series 402
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 20 | Chamfer | Plug |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ | End Shape | Square |
| Usable Length (LU) | 1″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Length Group | 1.5D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 402 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 1/4″ - 20 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.026
