#4-48NF HTGP H2 3F GP TPR

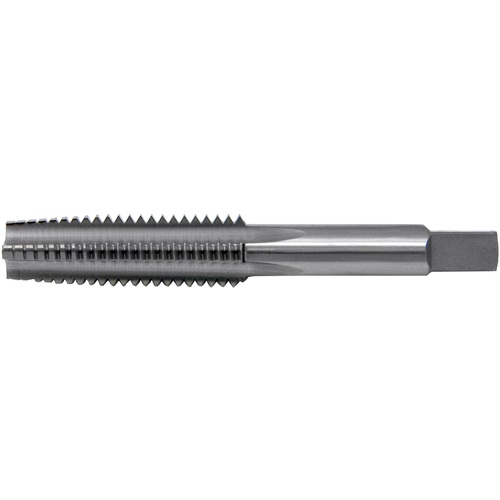

Straight Flute Tap; #4 - 48 ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; H2 ; Series 401
| Thread Diameter Size (TDZ) | #4 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 48 | Chamfer | Taper |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 9/16″ | End Shape | Square |
| Usable Length (LU) | 9/16″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Length Group | 1.5D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 401 |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #4 - 48 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.006
