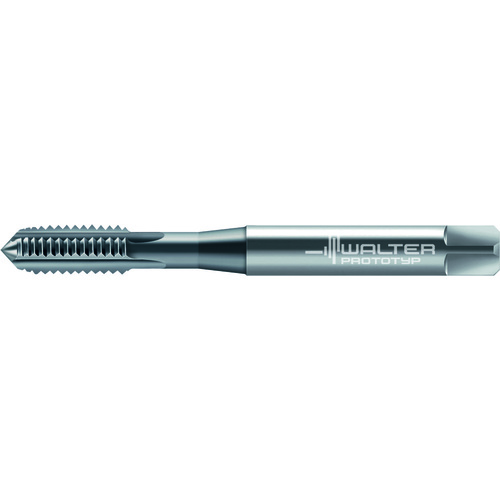

M4x0.7 6HX 3 Flute HSS NIT Straight Flute Tap
Straight Flute Tap; M4 × 0.7 mm ; 64.65 mm OAL ; 3 FL ; HSS ; Nitride ; 6HX
| Thread Diameter Size (TDZ) | M4 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.7 mm | Standard | DIN 371 |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 64.65 mm | Flute Length | 20 mm |
| Thread Cutting Part Length (THL) | 12 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M4 × 0.7 |
Product Features
| Family Description | 20312-M4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.015
