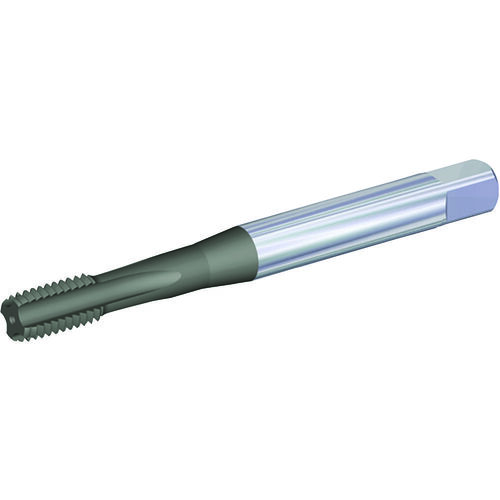

GX355007 M7X1 6HX STFL BOT E 371CH
Straight Flute Tap; M7 × 1 mm ; 80 mm OAL ; 4 FL ; Carbide ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M7 | Standard | DIN 371 |
| Thread Pitch (TP) | 1 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1P-2P |
| Overall Length (OAL) | 80 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 10 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Style | Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Neutral |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M7 × 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0739
