GX505012 M12X1.75 6HX STFL SBOTC 37

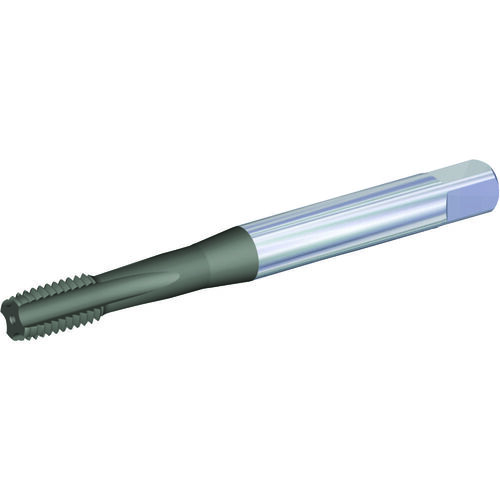

Straight Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; 4 FL ; Carbide ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M12 | Standard | DIN 376 |
| Thread Pitch (TP) | 1.75 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 18 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Style | Semi-Bottoming |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Neutral |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M12 × 1.75 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2050
