GX352738 M12X1.5 6HX 4FL STFL BOTCH

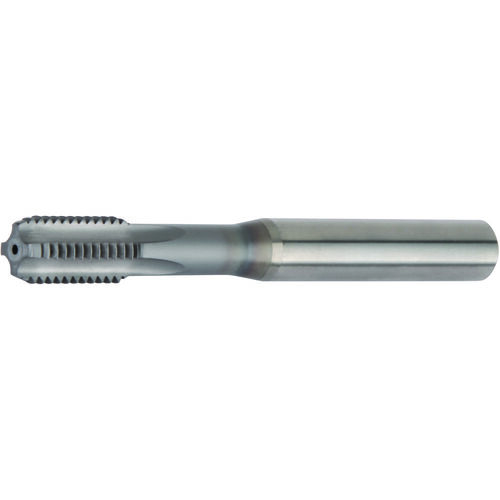

Straight Flute Tap; M12 × 1.5 mm ; 100 mm OAL ; 4 FL ; TiCN ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M12 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 1P-2P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 100 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 21 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M12 × 1.5 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2628
