GX472875 M16X2 6HX 4FL STFL BOT CHS

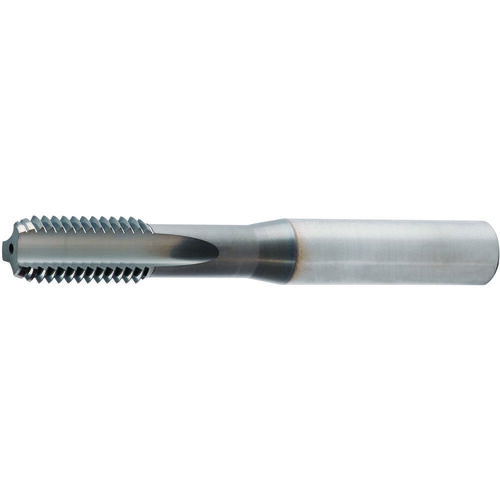

Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; 4 FL ; Carbide ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M16 | Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1P-2P |
| Overall Length (OAL) | 110 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 24 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Thread Size | M16 × 2 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.4497
