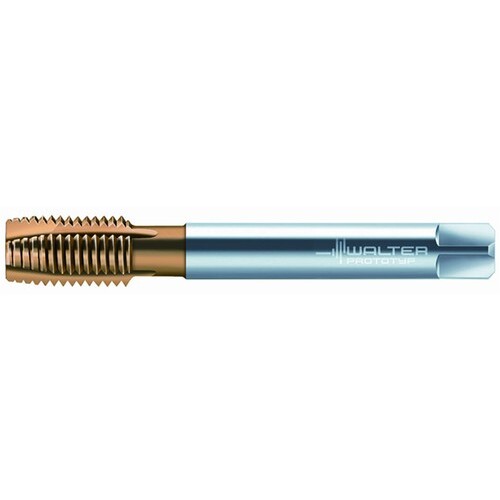

M36x4 6H 4 Flute HSS TiN Straight Flute Tap
Straight Flute Tap; M36 × 4 mm ; 200 mm OAL ; 4 FL ; HSS ; TiN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M36 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 4 mm | Standard | DIN 376 |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 200 mm | Flute Length | 87 mm |
| Thread Cutting Part Length (THL) | 48 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 28 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M36 × 4 |
Product Features
| Family Description | P2036005-M36 | Country of Origin | Germany |
Shipping Info
Package Weight
2.096
