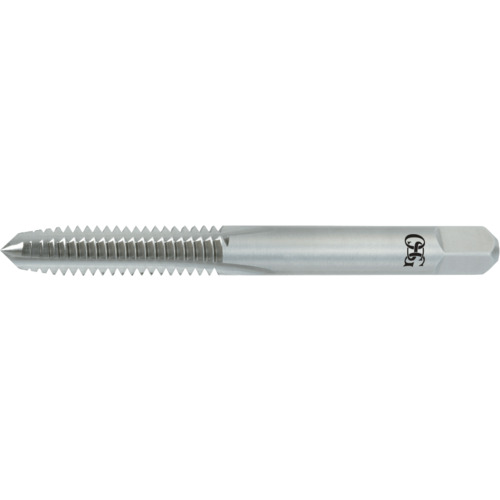

3/8-24 3Fl H3 HSS Straight Flute Plug Tap-Steam Oxide
Straight Flute Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS ; Black Oxide ; H3 ; Series 103
| Thread Diameter Size (TDZ) | 3/8″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 | Chamfer | 4P-4.5P |
| Thread Standard | NF | Coating | Black Oxide |
| Overall Length (OAL) | 2-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | End Shape | Chamfer |
| Usable Length (LU) | 1.413″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Shank Type | Round |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 103 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 3/8″ - 24 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
0.075
