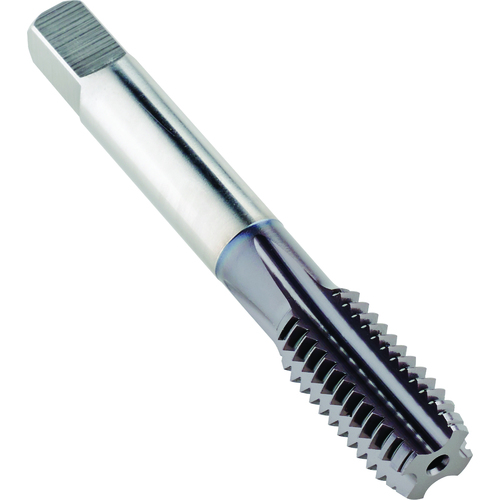

5/8″ NF, 18 TPI, 4 -Flute, H5 Semi-Bottoming Straight Flute Tap Series/List #2087
Straight Flute Tap; 5/8″ - 18 ; 3-13/16″ OAL ; 4 FL ; HSS-PM ; TiAlN ; H5 ; Series 2087
| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | HPT-High Performance Tap-Cast Iron Tap |
| Threads per Inch (TPI) | 18 | Chamfer | Semi-Bottoming |
| Thread Standard | NF | Coating | TiAlN |
| Overall Length (OAL) | 3-13/16″ | Drive Size (DRVS) | 0.36″ |
| Thread Cutting Part Length (THL) | 1.09″ | Flute Type | Straight |
| Usable Length (LU) | 1.09″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2087 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 5/8″ - 18 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.21
