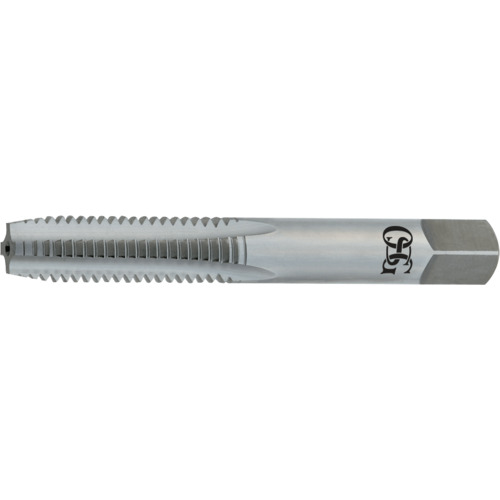

8-32 4Fl H3 HSS Left Hand Straight Flute Bottoming Tap-Bright
Straight Flute Tap; #8 - 32 ; 2-1/8″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 101L
| Thread Diameter Size (TDZ) | #8 | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 32 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-1/8″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 3/4″ | Style | Bottoming |
| Usable Length (LU) | 1.003″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.167″ | Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101L |
| Cutting Edge Material | HSS | Thread Size | #8 - 32 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
