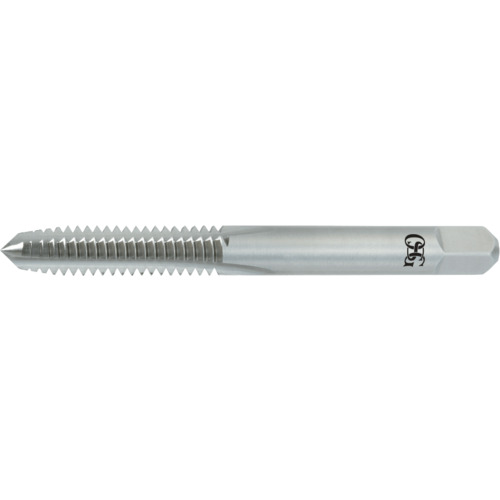

6-32 2Fl H3 HSS Straight Flute Bottoming Tap-Steam Oxide
Straight Flute Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSS ; Black Oxide ; H3 ; Series 104
| Thread Diameter Size (TDZ) | #6 | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 32 | Coating | Black Oxide |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 11/16″ | Style | Bottoming |
| Usable Length (LU) | 0.858″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 104 |
| Cutting Edge Material | HSS | Thread Size | #6 - 32 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.35000
Package Height
.25000
Package Weight
0.01
