5/16-18 2B 5FL TiCN

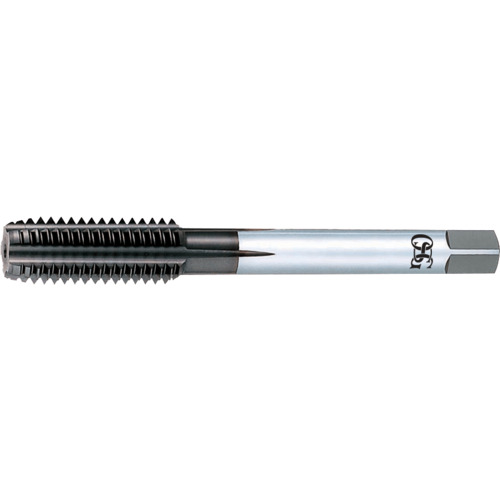

Straight Flute Tap; 5/16″ - 18 ; 90 mm OAL ; 5 FL ; Carbide ; TiCN ; 2B ; Series 311

| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 18 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | TiCN |
| Overall Length (OAL) | 90 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ | Style | Modified Bottoming |
| Usable Length (LU) | 1.378″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 311 |
| Applicable Material | | Hard Materials | | Thread Size | 5/16″ - 18 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Height
.45000
Package Weight
0.125
