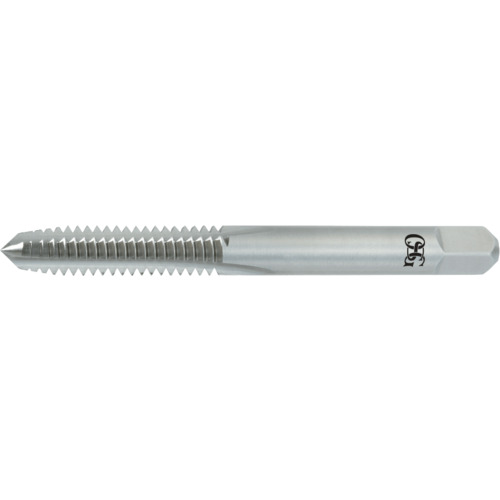

1/4-20 H3 2FL HS PLUG ST
Straight Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 2 FL ; HSS ; Uncoated ; H3 ; Series 104
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 20 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ | End Shape | Chamfer |
| Usable Length (LU) | 1.287″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Shank Type | Round |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 104 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 1/4″ - 20 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.90000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
