M6X1.0 3FL 1.5P D5

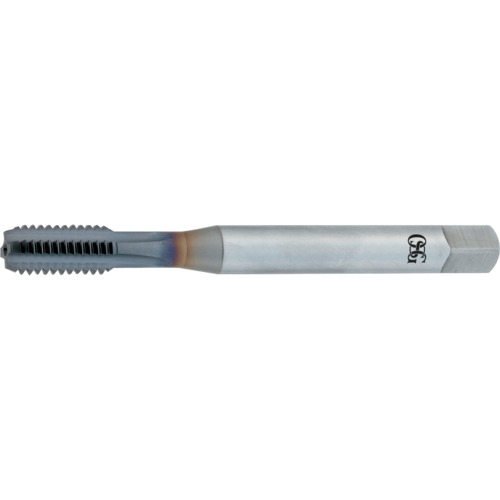

Straight Flute Tap; M6 × 1 mm ; 80 mm OAL ; 3 FL ; HSS-PM ; TiCN ; D5 ; Series 11055

| Thread Diameter Size (TDZ) | M6 | Special Feature | DIN Length |
| Thread Pitch (TP) | 1 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 80 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 26 mm | Flute Type | Straight |
| Usable Length (LU) | 30 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5.99 mm | Style | Bottoming |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 11055 |
| Thread Tolerance Class (TCTR) | D5 | Thread Size | M6 × 1 |
Product Features
| Remarks | •EXOTAP DC Oil Bottom Taps
•DIN Shank
•DIN Overall length
•TiCN Coated
•Coolant thru
•VC10 material to achieve high-speed tapping & long tool life
•Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle. | Country of Origin | Mexico |
