M8X1.25 4F D5 COOLANT

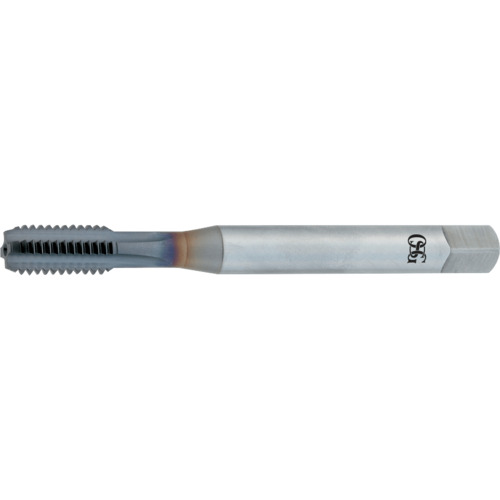

Straight Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 4 FL ; HSS-PM ; TiCN ; D5 ; Series 11053
| Thread Diameter Size (TDZ) | M8 | Special Feature | DIN Length |
| Thread Pitch (TP) | 1.25 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 90 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Straight |
| Usable Length (LU) | 35 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 8.07 mm | Style | Bottoming |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 11053 |
| Thread Tolerance Class (TCTR) | D5 | Thread Size | M8 × 1.25 |
Product Features
| Remarks | •EXOTAP DC Oil Bottom Taps •DIN Overall length Coolant thru •VC10 material to achieve high-speed tapping & long tool life •TiCN Coated •Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle. | Country of Origin | Mexico |
Shipping Info
Package Length
4.45000
Package Width
.45000
Package Height
.45000
Package Weight
0.066
