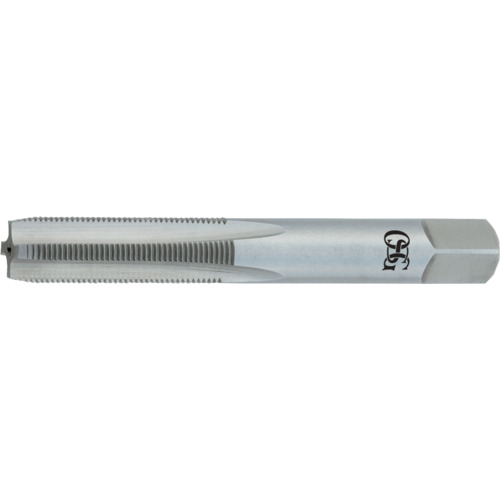

5/8-24 6Fl H3 HSS Straight Flute Bottoming Tap-Bright
Straight Flute Tap; 5/8″ - 24 ; 3-13/16″ OAL ; 6 FL ; HSS ; Uncoated ; H3 ; Series 101N
| Thread Diameter Size (TDZ) | 5/8″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 24 | Coating | Uncoated |
| Thread Standard | UNEF | Flute Type | Straight |
| Overall Length (OAL) | 3-13/16″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-13/16″ | Style | Bottoming |
| Usable Length (LU) | 2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101N |
| Cutting Edge Material | HSS | Thread Size | 5/8″ - 24 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
5.00000
Package Width
.95000
Package Height
.85000
Package Weight
0.2
