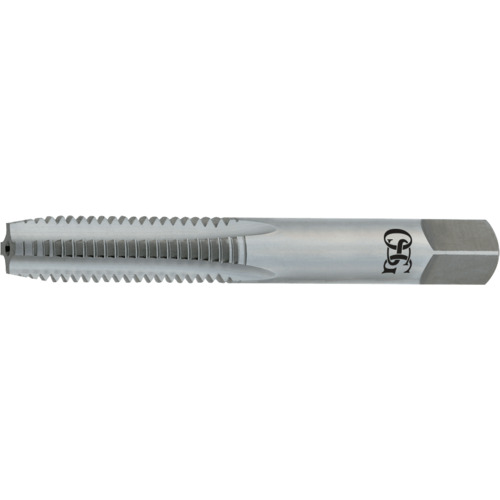

6-32 3FL H2 High Speed Steel Straight Fl Tap - Bright
Straight Flute Tap; #6 - 32 ; 2-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; H2 ; Series 126

| Thread Diameter Size (TDZ) | #6 | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 32 | Thread Tolerance Class (TCTR) | H2 |
| Thread Standard | NC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-3/8″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 7/8″ | Flute Type | Straight |
| Usable Length (LU) | 1.003″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.167″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 126 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | #6 - 32 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
