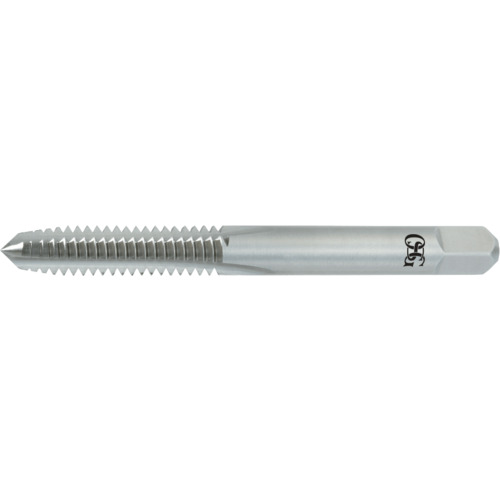

1/2-13 3Fl H3 HSS Straight Flute Bottoming Tap-Bright
Straight Flute Tap; 1/2″ - 13 ; 3-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; H3 ; Series 103
| Thread Diameter Size (TDZ) | 1/2″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 13 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 3-3/8″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-21/32″ | Style | Bottoming |
| Usable Length (LU) | 1.811″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 103 |
| Cutting Edge Material | HSS | Thread Size | 1/2″ - 13 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.90000
Package Width
.70000
Package Height
.65000
Package Weight
0.105
