M6x1.0 OH3 5FL TiCN

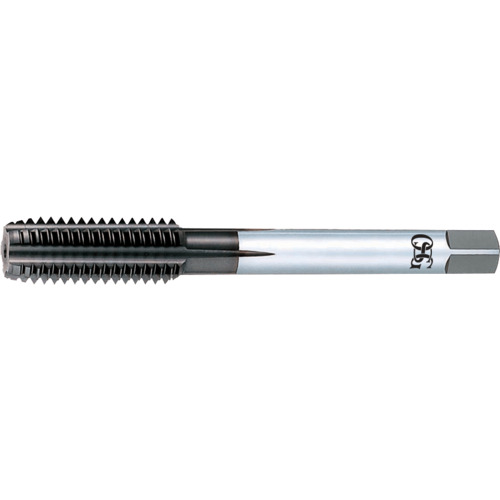

Straight Flute Tap; M6 × 1 mm ; 62 mm OAL ; 5 FL ; Carbide ; TiCN ; OH3 ; Series 341
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | OH3 |
| Thread Pitch (TP) | 1 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 62 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 24 mm | Style | Modified Bottoming |
| Usable Length (LU) | 32 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | 341 |
| Applicable Material | | Hard Materials | | Thread Size | M6 × 1 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.37000
Package Height
.33000
Package Weight
0.025
