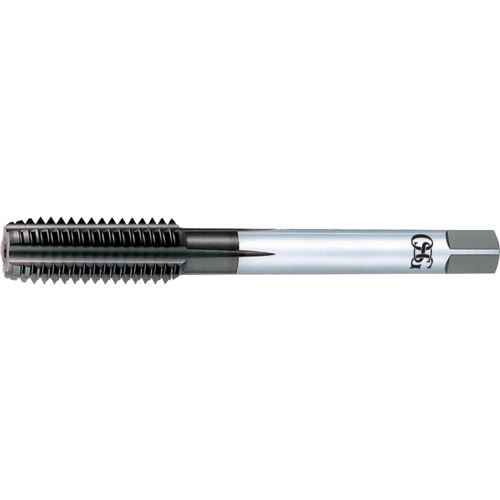

M3 0.5 Dia. - OH3-4 FL - Carbide - TiCN - Modified Bottoming - Straight Flute Tap
Straight Flute Tap; M3 × 0.5 mm ; 46 mm OAL ; 4 FL ; Carbide ; TiCN ; OH3 ; Series 341
| Thread Diameter Size (TDZ) | M3 | Thread Tolerance Class (TCTR) | OH3 |
| Thread Pitch (TP) | 0.5 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 46 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 18 mm | Style | Modified Bottoming |
| Usable Length (LU) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 341 |
| Applicable Material | | Hard Materials | | Thread Size | M3 × 0.5 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.30000
Package Weight
0.015
