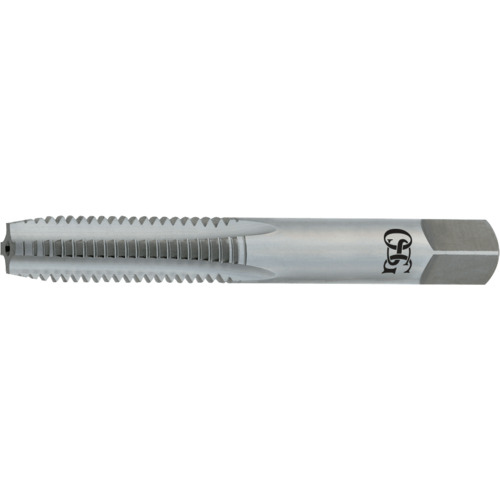

3/8-24 4FL H3 High Speed Steel Straight Fl Tap - Bright
Straight Flute Tap; 3/8″ - 24 ; 3-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 126
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Tool Type | Hand Tap |
| Thread Standard | NF | Chamfer | 3.5P-4.5P |
| Overall Length (OAL) | 3-3/8″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 1-21/32″ | Flute Type | Straight |
| Usable Length (LU) | 1.688″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 126 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | 3/8″ - 24 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.55000
Package Weight
0.075
