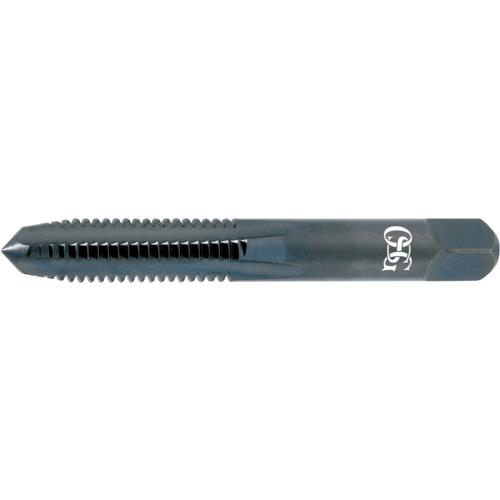

6-40 H2 2FL HSS Straight Flute Plug Tap-TiN
Straight Flute Tap; #6 - 40 ; 2″ OAL ; 2 FL ; HSS ; TiN ; H2 ; Series 102

| Thread Diameter Size (TDZ) | #6 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 40 | Chamfer | 4P-4.5P |
| Thread Standard | NF | Coating | TiN |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.799″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 102 |
| Cutting Edge Material | HSS | Thread Size | #6 - 40 |
| Thread Tolerance Class (TCTR) | H2 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.45000
Package Height
.35000
Package Weight
0.01
