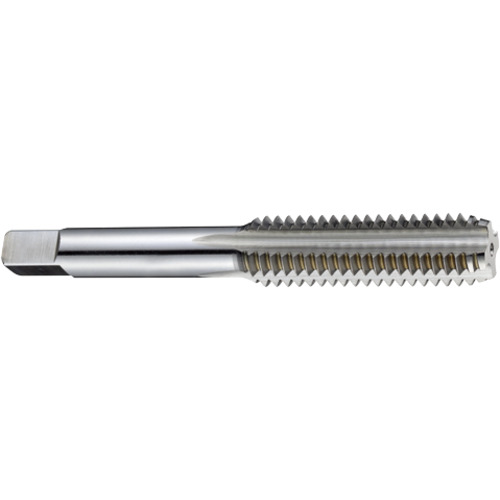

Straight Flute Tap; 1/2″ - 20 ; 3.38″ OAL ; 4 FL ; HSS ; TiN ; H3 ; Series T8316
Straight Flute Tap; 1/2″ - 20 ; 3.38″ OAL ; 4 FL ; HSS ; TiN ; H3 ; Series T8316
| Thread Diameter Size (TDZ) | 1/2″ | Coating | TiN |
| Threads per Inch (TPI) | 20 | Tapping Prehole Diameter (Pre-hole) | 0.4545″ |
| Thread Standard | UNF | Flute Length | 1-11/16″ |
| Overall Length (OAL) | 3.38″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 1.66″ | End Shape | Bottoming |
| Usable Length (LU) | 1.66″ | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | H3 | Square Size | 0.275″ |
| Standard | 302 | Measurement Type | Inch |
| Tool Type | Hand Tap | Series/List # | T8316 |
| Chamfer | 1.5P-2P | Thread Size | 1/2″ - 20 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.875
Package Width
0.75
Package Height
0.625
Package Weight
0.192
