GT425006 M14X2 6HX STFL BOTT 376

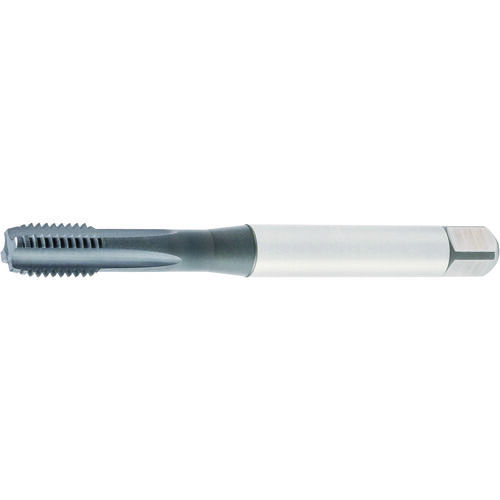

Straight Flute Tap; M14 × 2 mm ; 110 mm OAL ; 4 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M14 | Chamfer | 1P-2P |
| Thread Pitch (TP) | 2 mm | Flute Type | Straight |
| Thread Standard | Metric | Style | Bottoming |
| Overall Length (OAL) | 110 mm | Shank Type | Round w/ Drive Square |
| Thread Cutting Part Length (THL) | 20 mm | Cutting Direction (HAND) | Neutral |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Square Size | 9 mm |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M14 × 2 |
| Standard | DIN376 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.1764
