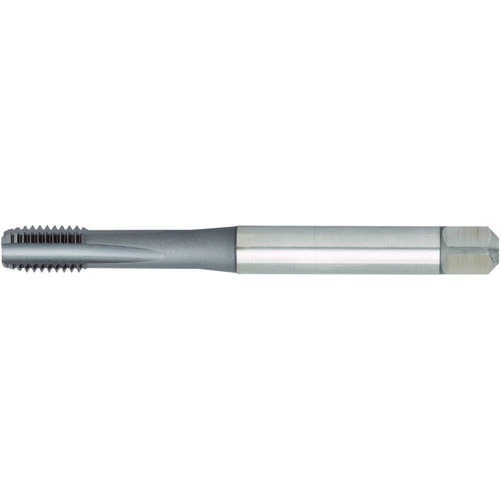

GT405010 M20X2.5 6HX STFL SBOTT
Straight Flute Tap; M20 × 2.5 mm ; 140 mm OAL ; 4 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M20 | Chamfer | 2P-3P |
| Thread Pitch (TP) | 2.5 mm | Flute Type | Straight |
| Thread Standard | Metric | Style | Semi-Bottoming |
| Overall Length (OAL) | 140 mm | Shank Type | Round w/ Drive Square |
| Thread Cutting Part Length (THL) | 25 mm | Cutting Direction (HAND) | Neutral |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Square Size | 12 mm |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M20 × 2.5 |
| Standard | DIN376 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.4161
