GT065003 M6X1 6HX STFL 371

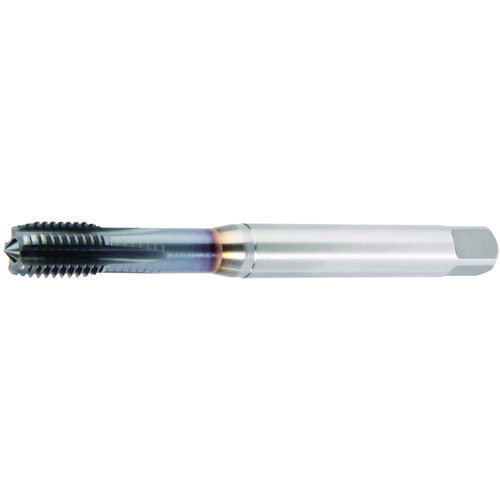

Straight Flute Tap; M6 × 1 mm ; 80 mm OAL ; 4 FL ; HSSCo-PM ; 6HX
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | M6 | Standard | DIN371 |
| Thread Pitch (TP) | 1 mm | Chamfer | 3P-5P |
| Thread Standard | Metric | Flute Type | Straight |
| Overall Length (OAL) | 80 mm | Style | Plug |
| Thread Cutting Part Length (THL) | 10 mm | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | | Square Size | 4.9 mm |
| Cutting Edge Material | HSSCo-PM | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M6 × 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0331
