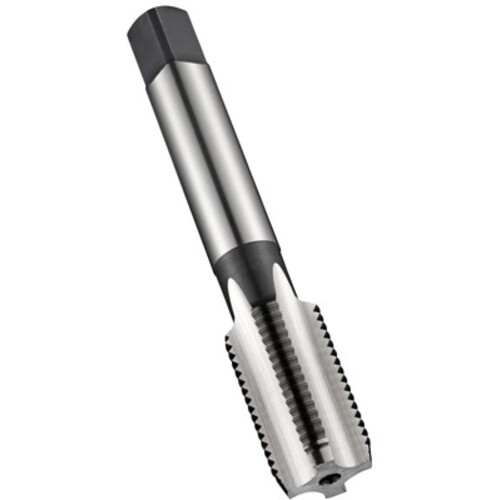

PG36NO3 HSS 6Fl Straight Flute Machine Tap E-code # E243PG36NO3
Straight Flute Tap; PG36 - 16 ; 140 mm OAL ; 6 FL ; HSS ; Uncoated ; Series E243
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | PG36 | Tapping Prehole Diameter (Pre-hole) | 45.5 mm |
| Threads per Inch (TPI) | 16 | Flute Length | 32 mm |
| Thread Standard | PG | Flute Type | Straight |
| Overall Length (OAL) | 140 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 36 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | E243 |
| Tool Type | Machine Tap | Thread Size | PG 36-16 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E243PG36NO3 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.243
