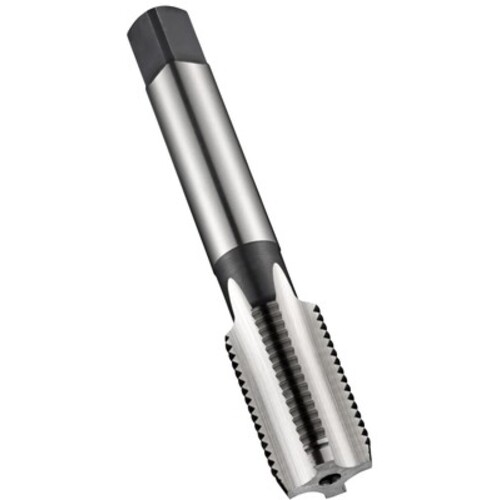

PG21NO2 HSS 4Fl Straight Flute Machine Tap E-code # E243PG21NO2
Straight Flute Tap; PG21 - 16 ; 90 mm OAL ; 4 FL ; HSS ; Uncoated ; Series E243
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | PG21 | Tapping Prehole Diameter (Pre-hole) | 27 mm |
| Threads per Inch (TPI) | 16 | Flute Length | 22 mm |
| Thread Standard | PG | Flute Type | Straight |
| Overall Length (OAL) | 90 mm | Style | Plug |
| Thread Cutting Part Length (THL) | 22 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | E243 |
| Tool Type | Machine Tap | Thread Size | PG 21-16 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E243PG21NO2 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.586
