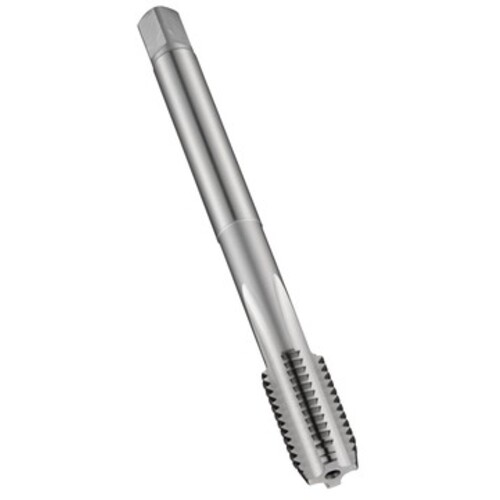

Dormer HSS-E-PM Bright UNC Machine Tap Straight Flute DIN 376 Series E275 E-code # E2751.1/8
Straight Flute Tap; 1-1/8″ - 7 ; 180 mm OAL ; 4 FL ; HSSE-PM ; Uncoated ; Series E275
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1-1/8″ | Coating | Uncoated |
| Threads per Inch (TPI) | 7 | Tapping Prehole Diameter (Pre-hole) | 25 mm |
| Thread Standard | UNC | Flute Length | 45 mm |
| Overall Length (OAL) | 180 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 45 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Measurement Type | Inch |
| Standard | DIN 376 | Series/List # | E275 |
| Tool Type | Machine Tap | Thread Size | 1-1/8″ - 7 |
Product Features
| Family Description | E-code # E2751.1/8 | Country of Origin | India |
Shipping Info
Package Weight
0.118
