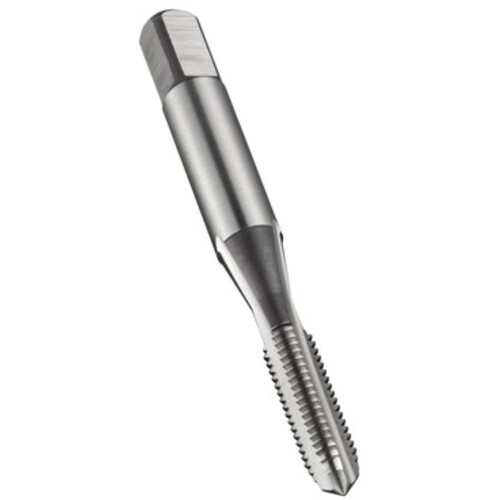

Dormer HSS Bright MF Hand Tap Straight Flute DIN 2181 Series E105 E-code # E105M15X1.0NO3
Straight Flute Tap; M15 × 1 mm ; 70 mm OAL ; 4 FL ; HSS ; Uncoated ; Series E105
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M15 | Coating | Uncoated |
| Thread Pitch (TP) | 1 mm | Tapping Prehole Diameter (Pre-hole) | 14 mm |
| Thread Standard | MF | Flute Length | 16 mm |
| Overall Length (OAL) | 70 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 16 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Standard | DIN 2181 | Series/List # | E105 |
| Tool Type | Hand Tap | Thread Size | M15 × 1 |
Product Features
| Family Description | E-code # E105M15X1.0NO3 | Country of Origin | Brazil |
Shipping Info
Package Weight
1.515
