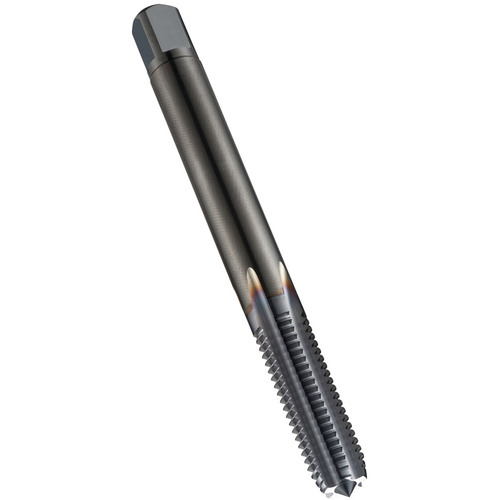

M12x1.75 SC Straight Flute Semi Bottoming Tap-TIC E-code # T210M12
Straight Flute Tap; M12 × 1.75 mm ; 110 mm OAL ; 6 FL ; Carbide ; TiCN ; Series T210
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M12 | Tapping Prehole Diameter (Pre-hole) | 10.4 mm |
| Thread Pitch (TP) | 1.75 mm | Flute Length | 32 mm |
| Thread Standard | M | Flute Type | Straight |
| Overall Length (OAL) | 110 mm | Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Series/List # | T210 |
| Tool Type | Machine Tap | Thread Size | M12 × 1.75 |
| Coating | TiCN |
Product Features
| Family Description | E-code # T210M12 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
