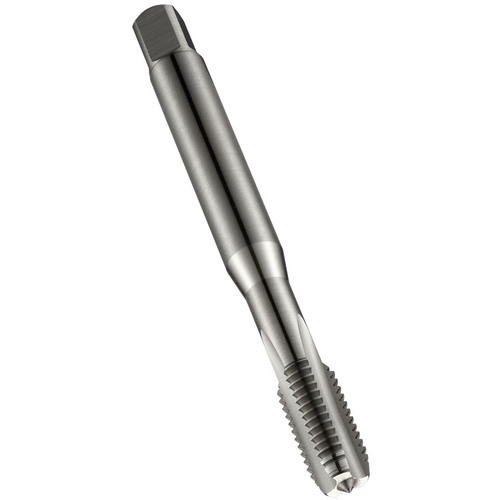

Dormer HSS-E-PM Bright M Machine Tap Straight Flute DIN 371 Series E200 E-code # E200M10
Straight Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSE-PM ; Uncoated ; Series E200

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M10 | Coating | Uncoated |
| Thread Pitch (TP) | 1.5 mm | Tapping Prehole Diameter (Pre-hole) | 8.5 mm |
| Thread Standard | M | Flute Length | 20 mm |
| Overall Length (OAL) | 100 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 20 mm | Style | Bottoming |
| Usable Length (LU) | 39 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSE-PM | Series/List # | E200 |
| Standard | DIN 371 | Thread Size | M10 × 1.5 |
| Tool Type | Machine Tap |
Product Features
| Family Description | E-code # E200M10 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.197
