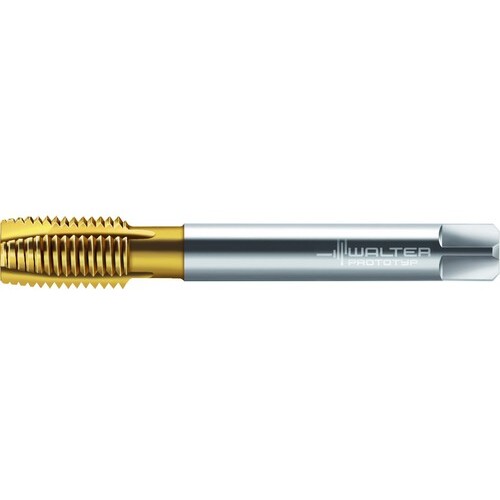

M8x0.5 6H 3 Flute HSS TiN Straight Flute Tap
Straight Flute Tap; M8 × 0.5 mm ; 83.78 mm OAL ; 3 FL ; HSS ; TiN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.5 mm | Standard | DIN 374 |
| Thread Standard | Metric | Coating | TiN |
| Overall Length (OAL) | 83.78 mm | Flute Length | 33 mm |
| Thread Cutting Part Length (THL) | 15 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|35 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M8 × 0.5 |
Product Features
| Family Description | P2136005-M8X0.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.049
