#10 56 TPI, 4 -Flute, H2 Taper Straight Flute Tap Series/List #2046

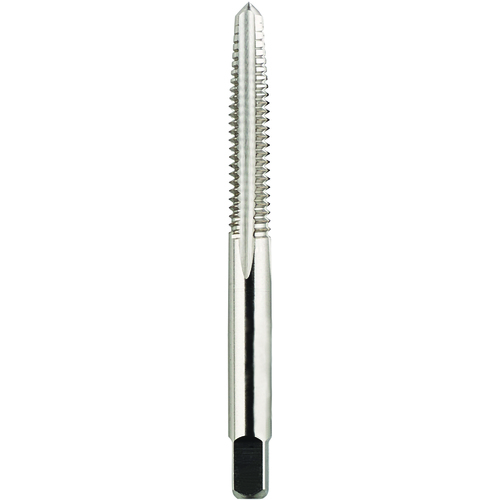

Straight Flute Tap; #10 - 56 ; 2-3/8″ OAL ; 4 FL ; HSS ; H2 ; Series 2046
| Thread Diameter Size (TDZ) | #10 | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 56 | Chamfer | Taper |
| Thread Standard | NS | Coating | Uncoated |
| Overall Length (OAL) | 2-3/8″ | Drive Size (DRVS) | 0.152″ |
| Thread Cutting Part Length (THL) | 7/8″ | Flute Type | Straight |
| Usable Length (LU) | 7/8″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Machine Screw |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #10 - 56 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
