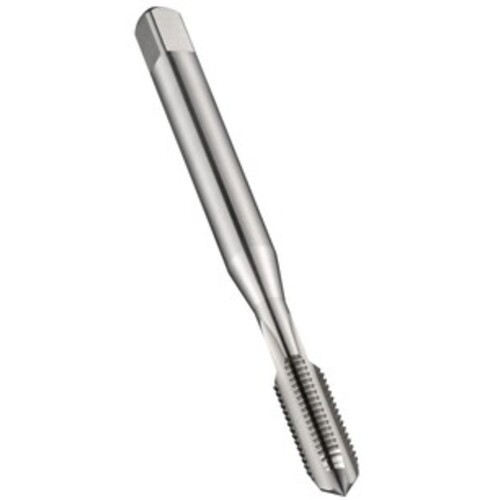

Dormer HSS Bright EGM Machine Tap Straight Flute DORMER-ISO Series E620 E-code # E620M6
Straight Flute Tap; M6 × 1 mm ; 72 mm OAL ; 3 FL ; HSS ; Uncoated ; Series E620

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M6 | Coating | Uncoated |
| Thread Pitch (TP) | 1 mm | Tapping Prehole Diameter (Pre-hole) | 6.3 mm |
| Thread Standard | EGM | Flute Length | 16 mm |
| Overall Length (OAL) | 72 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 16 mm | Style | Semi-Bottoming |
| Usable Length (LU) | 29 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | E620 |
| Tool Type | Machine Tap | Thread Size | M6 × 1 |
Product Features
| Family Description | E-code # E620M6 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.904
