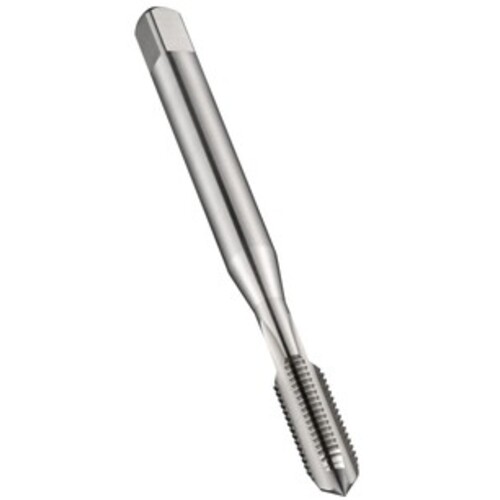

Dormer HSS Bright EGM Machine Tap Straight Flute DORMER-ISO Series E620 E-code # E620M3
Straight Flute Tap; M3 × 0.5 mm ; 53 mm OAL ; 3 FL ; HSS ; Uncoated ; Series E620
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M3 | Coating | Uncoated |
| Thread Pitch (TP) | 0.5 mm | Tapping Prehole Diameter (Pre-hole) | 3.2 mm |
| Thread Standard | EGM | Flute Length | 14 mm |
| Overall Length (OAL) | 53 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 14 mm | Style | Semi-Bottoming |
| Usable Length (LU) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | E620 |
| Tool Type | Machine Tap | Thread Size | M3 × 0.5 |
Product Features
| Family Description | E-code # E620M3 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.753
