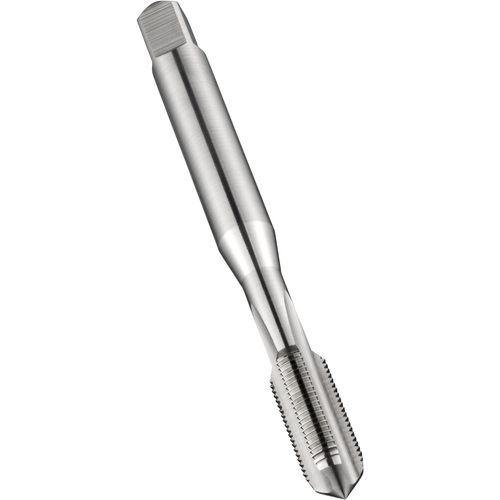

7/8-20 ST HSS Bottoming Tap-Bright E-code # E5707/8X20NO3
Straight Flute Tap; 7/8″ - 20 ; 118 mm OAL ; 4 FL ; HSS ; Uncoated ; Series E570

Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 7/8″ | Tapping Prehole Diameter (Pre-hole) | 21 mm |
| Threads per Inch (TPI) | 20 | Flute Length | 30 mm |
| Thread Standard | UN | Flute Type | Straight |
| Overall Length (OAL) | 118 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 30 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | E570 |
| Tool Type | Machine Tap | Thread Size | 7/8″ - 20 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E5707/8X20NO3 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.485
