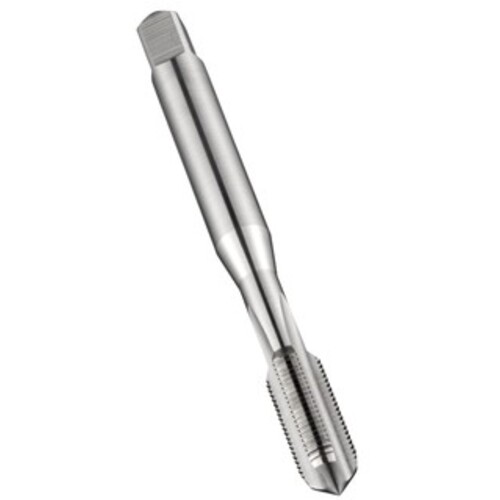

9/16-24 ST HSS Bottoming Tap-Bright E-code # E5709/16X24NO3
E-code # E5709/16X24NO3
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 9/16″ | Tapping Prehole Diameter (Pre-hole) | 13.25 mm |
| Threads per Inch (TPI) | 24 | Flute Length | 24 mm |
| Thread Standard | UN | Flute Type | Straight |
| Overall Length (OAL) | 95 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 24 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 11.2 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | E570 |
| Tool Type | Machine Tap | Thread Size | 9/16″ - 24 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E5709/16X24NO3 | Country of Origin | JP |
Shipping Info
Package Weight
.1609
