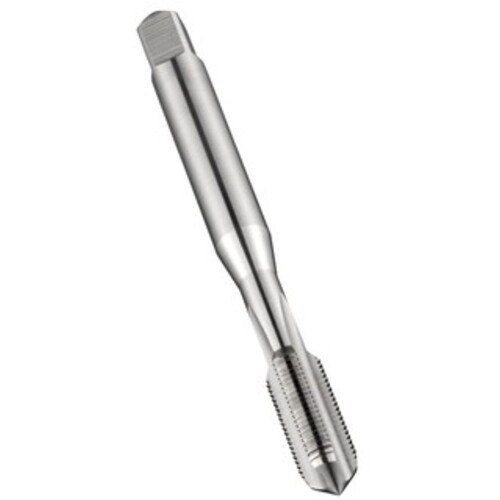

1/2-28 ST HSS Bottoming Tap-Bright E-code # E5701/2X28NO3
Straight Flute Tap; 1/2″ - 28 ; 89 mm OAL ; 3 FL ; HSS ; Uncoated ; Series E570
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/2″ | Tapping Prehole Diameter (Pre-hole) | 11.8 mm |
| Threads per Inch (TPI) | 28 | Flute Length | 22 mm |
| Thread Standard | UN | Flute Type | Straight |
| Overall Length (OAL) | 89 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 22 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | E570 |
| Tool Type | Machine Tap | Thread Size | 1/2″ - 28 |
| Coating | Uncoated |
Product Features
| Family Description | E-code # E5701/2X28NO3 | Country of Origin | Brazil |
Shipping Info
Package Weight
1.753
