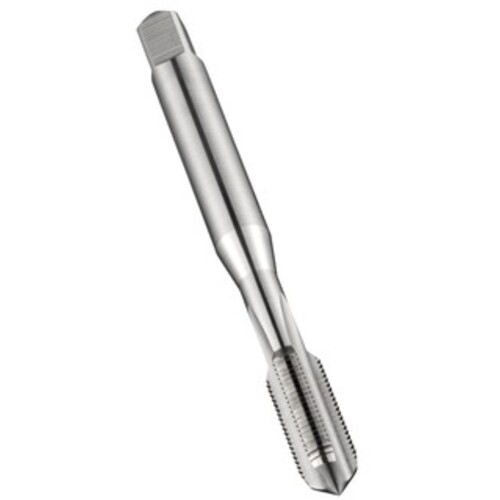

Dormer HSS Bright UN Machine Tap Straight Flute ISO 529 Series E570 E-code # E5701/4X32NO3
Straight Flute Tap; 1/4″ - 32 ; 66 mm OAL ; 3 FL ; HSS ; Uncoated ; Series E570
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/4″ | Coating | Uncoated |
| Threads per Inch (TPI) | 32 | Tapping Prehole Diameter (Pre-hole) | 5.6 mm |
| Thread Standard | UN | Flute Length | 13 mm |
| Overall Length (OAL) | 66 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 13 mm | Style | Bottoming |
| Usable Length (LU) | 26 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6.3 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | E570 |
| Tool Type | Machine Tap | Thread Size | 1/4″ - 32 |
Product Features
| Family Description | E-code # E5701/4X32NO3 | Country of Origin | Brazil |
Shipping Info
Package Weight
1.327
