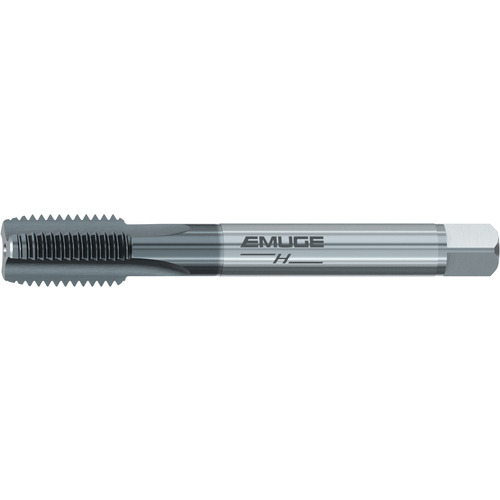

Straight Flute Tap; #1 -8 × 6.299″ OAL ; HSSE ; TiCN ; UNC ; 3B
Straight Flute Tap; #1 - 8 ; 6.299″ OAL ; HSSE ; TiCN ; 2BX ; Series CU109101
| Thread Diameter Size (TDZ) | #1 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Rekord A-Steel |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 6.299″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | CU109101 |
| Thread Tolerance Class (TCTR) | 2BX |
Product Features
| Remarks | • Rekord A-Steel is a straight flute design best suited for short chipping steel material grades in through & blind hole applications • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.82
